Tractor implement Front end loader with tractor

GET A QUOTE

Product Highlights

Parameter:

Tractor front end loader with attached implement

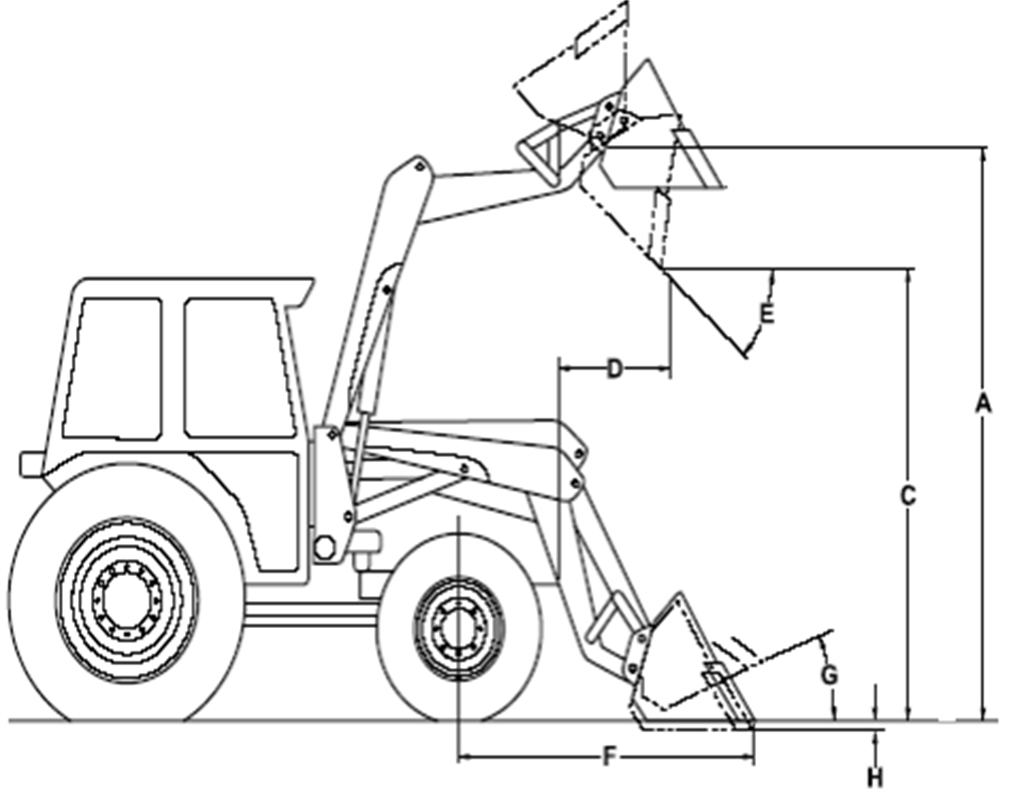

Loader Model			TZ03D	TZ04D	TZ06D	TZ08D	TZ10D	TZ12D	TZ16D
Matching Tractor		hp	20~40	30~55	45~70	55~90	80~110	90~140	140~180
Max. Lifting Height	H	mm	2550	2740	3010	3400	3710	3970	4260
Dumping Height	A	mm	1840	2100	2370	2480	2720	3000	3200
Over loading Height	L	mm	2370	2560	2830	3220	3490	3770	4000
Dumping Distance	W	mm	500	600	640	690	740	900	900
Ground Clearance	B	mm	1200	1360	1500	1630	1780	1930	1930
Max. Tip in Angle	X	°	48	48	48	54	54	54	54
Tip out Angle	Z	°	58	58	58	58	58	58	58
Crowd Angle	V		135	135	135	135	145	145	145
Digging Depth	S		100	100	120	140	180	200	200
Lifting Force	Q1		2224	2144	2150	1997	2308	2403	2620
Lifting Force	Q2		1474	1321	1286	1187	1452	1690	1850
Bucket Model			04DP125	04DP140	06DP150	08DP160	08DP170	12DP200	16DP240
Bucket Width			1250	1400	1500	1600	1700	2000	2400
Bucket Capacity			0.18	0.21	0.35	0.4	0.44	0.7	1.6
Lifting Capacity			300	400	600	800	1000	1200	1600

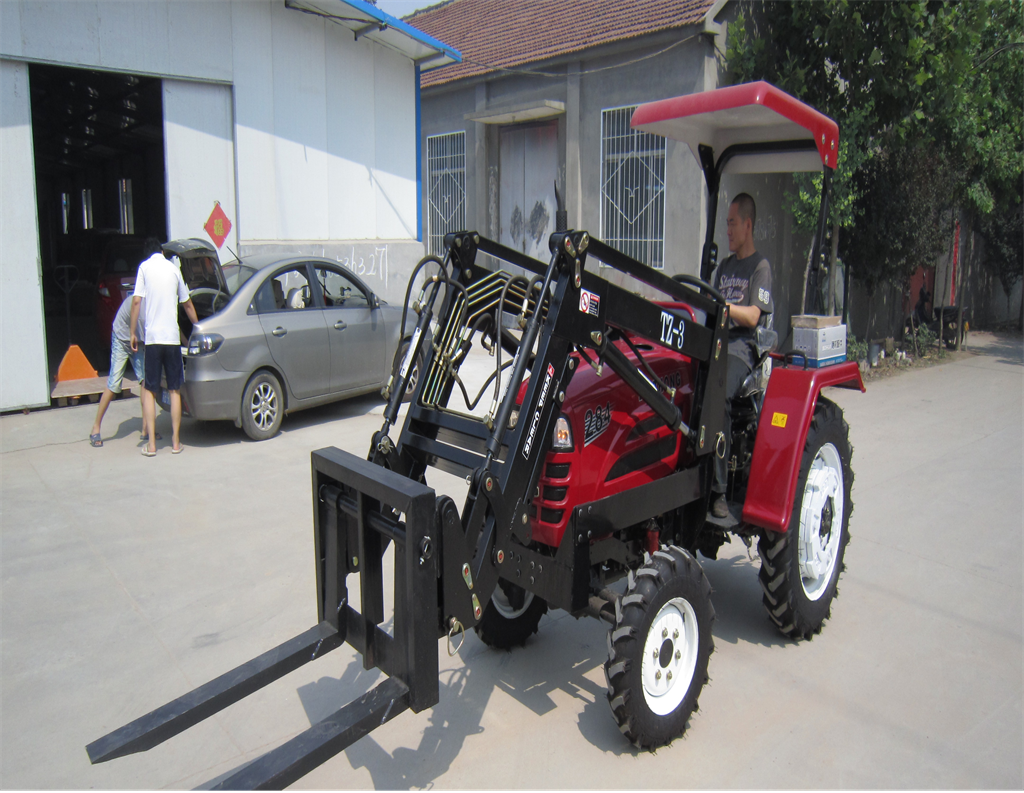

Pallet fork

MODEL	DT04	DT06
Matched front end loader	TZ-3/TZ-4	TZ-6/TZ-8
DIMENSIONS (L x W x H)	1300x1130x600mm	1300x1230x700mm
STRUCTURE WEIGHT	130kg	160kg
Bracket Width	113cm	123cm
Rated LOAD(KG)	400	600

LOG GRAB

MODEL	DT04	DT06
MATCHED	TZ-3/TZ-4	TZ-6/TZ-8
FORK LENGTH	1100mm	1200mm
BRACKET WIDTH	1100MM	1200MM
GRABBING DIA	10-80cm	15-95cm
Rated LOAD(KG)	400	600
WEIGHT(KG)	180	2200

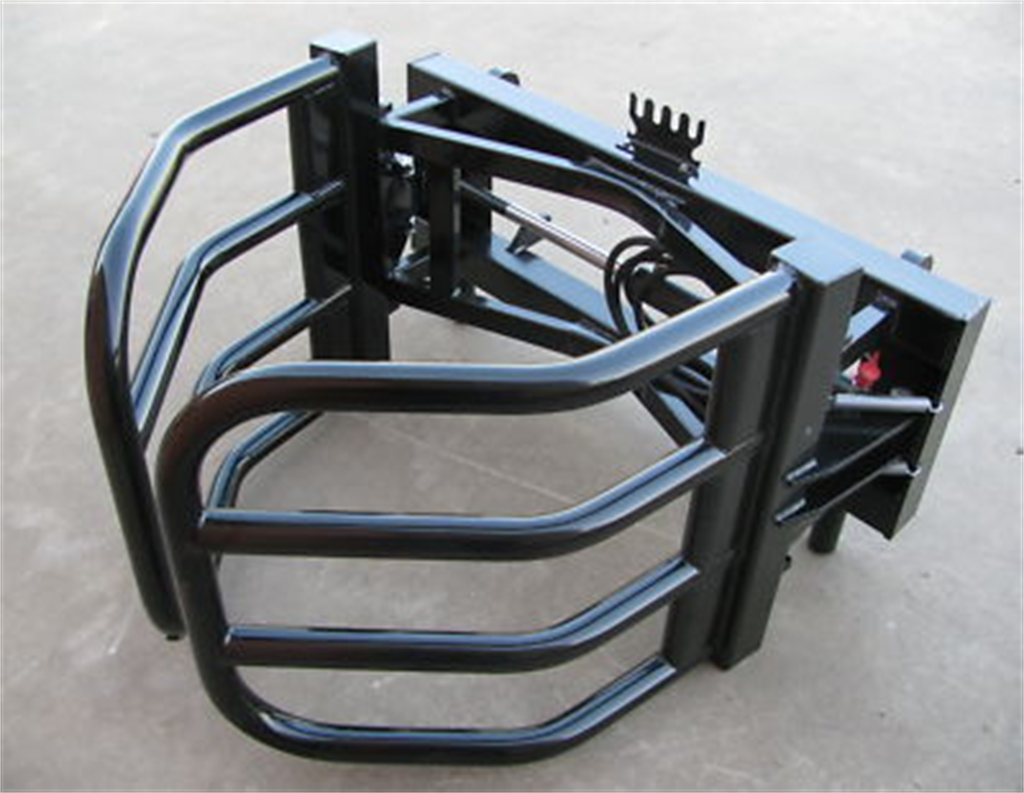

BALE GRAB

MODEL	DK05	DK10
Matched front end loader	TZ-3/TZ-4	TZ-6/TZ-8
GRABBING BALE DIA(CM)	50-125mm	60-160mm
RATED GRABBING WEIGHT(KG)	400	750
GRABBING DIA	10-80cm	15-95cm
WEIGHT(KG)	180	220
